Microscope
Design at the service of Advanced Technology
Compact, Ergonomic, and Versatile
Its excellent optical and mechanical features, together with its great mobility and versatility, make the OPDent5 microscope the ideal equipment for any dental specialty, providing quality treatment in all areas.
The sturdiness and stability of the OP-Dent5 microscope, as well as the freedom of movement, enable the head to be placed in any desired position. This allows the specialist to adopt a correct ergonomic sitting posture that optimizes comfort and efficiency.
The OP-Dent5 microscope incorporates a high-power LED light source for optimum illumination, which is crucial for obtaining an outstanding image quality.
A complete range of beam splitters for showing live images on a monitor, taking pictures or capturing videos, as well as the possibility of transferring the images to a PC or laptop, is also available.
Mechanics and Optics
The microscope head, with its multi-directional movements, also incorporates a knob for fine focus adjustments. The head´s functional and ambidextrous design makes it very comfortable and easy to operate
INCLINABLE BINOCULAR
The wide turning range of 0º to 240º allows for the perfect positioning of the microscope to assure the best ergonomics.
EYEPIECES
Optional: 12,5x and 16x widefield
Large diameter lenses of high quality, providing bright and chromatically real images.
EYEPIECES
Optional: 12,5x and 16x widefield
Large diameter lenses of high quality, providing bright and chromatically real images.
OBJECTIVES
Optional: 200mm, 300mm, 400mm and
Varifocal (from 200mm to 350mm).
The objectives provide a uniform and bright illumination of the area explored.
EFFECTIVE MAGNIFICATIONS
Optiman Ergonomics in Dental Microscopy
45º ROTATING EXTENSION
A 45-degree extension increases the distance between the patient´s mouth and the eyes of the professional. This feature helps reducing work-related fatigue, as it ensures a perfectly relaxed working position where shoulders and arms remain at a correct angulation.
This extension system also provides a 50-degree rotation. The microscope head can be tilted 25 degrees to the left, or 25 degrees to the right, without changing the position of the binocular. This means that the eyepieces stay in a horizontal position, making it very easy and comfortable to focus the microscope on a specific examination area. At the same time, it facilitates an optimal ergonomic sitting position for the professional.

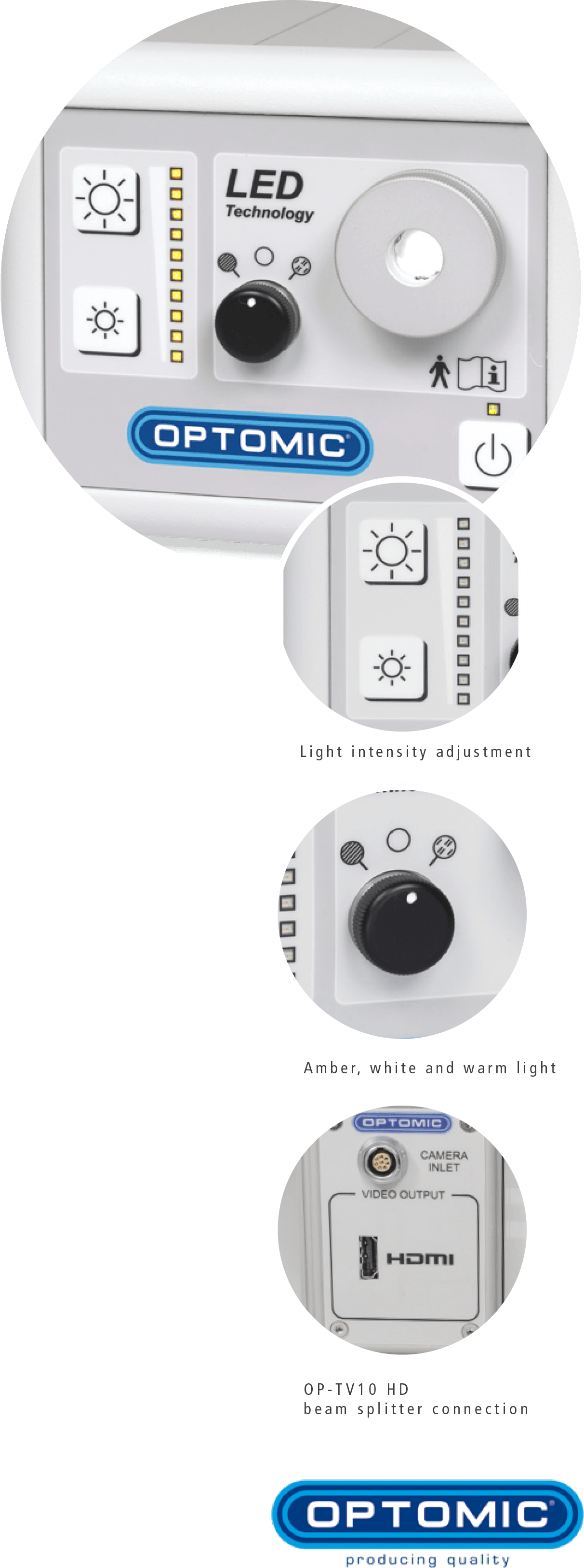

LED Ilumination Technology
The LED light source features a bright white LED light with the possibility of adjusting the intensity. As a unique option, it is also possible to select a warmer light, according to the preference of each specialist. A swinging amber filter (ultraviolet light suppressor) is of course also available.
The FIBROLUX LED HP light source is very easy to use due to its intuitive product design. It is a low consumption device that offers an extraordinary long useful life.
- LED useful life: over 60.000 hours.
- Light intensity: 10.000 Klux.
- Two color temperatures: 6.000ºK (white light) and 4.750ºK (warm light).
- Amber filter to prevent resin material curing too fast.
- Light intensity control without color variations.
- Cooling system with two independent low noise fans.
- Robust, long-lasting housing made of extruded aluminum.
- Safety system against an abnormal increase of internal temperature.
- Stand-by mode that ensures the lowest possible energy use (ErP directive).
- Low maintenance device.
- Two outputs of 12V to connect peripheral devices as a monitor or camera.
- Connection for optional hand control.
OP-TV8
Compact video-microscopy system with integrated CCD high resolution camera.
OP-TV10 HD
built-in CMOS Full HD resolution camera.
OP-TV DC + DIGITAL CAMERA
digital photographic camera.
Digital Microscopy
BEAM SPLITTERS

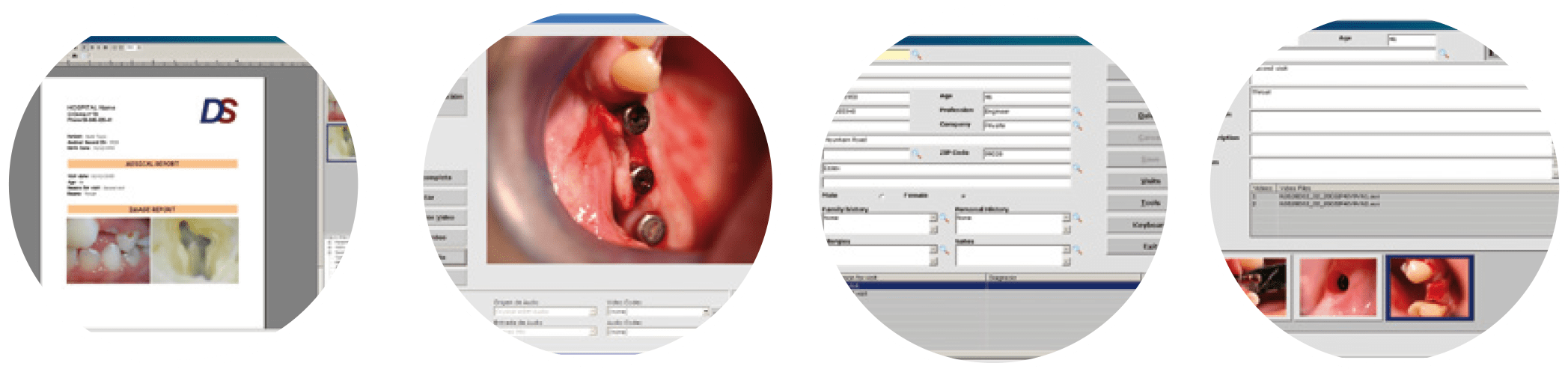

DIGITALLY SOFT HD
The Digitally Soft HD allows to store and manage information from clinical records, which permits the patient´s data to be processed in a simple and efficient manner.
It captures videos and photos from any video source and offers the possibility of creating reports with images of, for example, pre- and post-treatment conditions. Many other functions as statistics or area calculations are also integrated
Mounting Options
Multiple designs for floor, wall, and ceiling mounting are available. All options confer the microscope with great stability.
ROLLING FLOOR STAND
General Features
HEAD
Stereoscopic with micrometric focusing.
BINOCULAR
EYEPIECES
MAGNIFICATION CHANGER
OBJECTIVE
Optional: 200mm, 300mm, 400mm and Varifocal objective (from 200mm to 350mm)
EFFECTIVE MAGNIFICATIONS
LIGHT SYSTEM
LIGHT CONDUCTION
MOVEMENT SYSTEM
blocking adjustments. Exclusive Soft Move system.
